Double Ended Shear Beam Load Cell

Double Ended Shear Beam Load Cell
Double Ended Shear Beam Load Cell
Product Code : AD 70610
Product Description

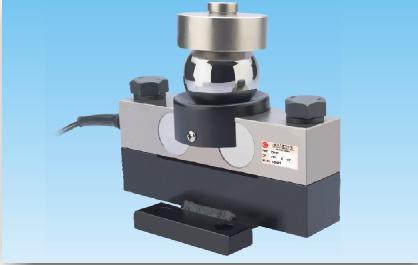

Double Ended Shear Beam Load Cell

  • 70610 load cells are suitable for truck, tank and hopper weighing.
  • This is constructed from electroless nickel plated heat treated tool steel suitable for harsh industrial applications.
  • Cup and steel ball mounted mechanism is self restoring and self centering.
  • Transient voltage protection is provided for protection against lightning and line voltage faults.

Applications

  • Truck weighbridge
  • Tank and hopper weighing
  • Tensile testing

Features:

  • 10 Tf. to 30Tf. Capacities.
  • Complete environmental Protection - IP68 class.
  • Standard output 2.0mV/V available.
  • Hardened tool steel construction.
  • Good side force and shock resistance.
  • Full mounting hardware are provided with the load cell.

Performance Specifications:

Standard Capacities (Tf.)

10, 20, 30

Excitation Voltage

10 VDC - Maximum 15 VDC

Nominal Output

2.0 mV/V

Non - Linearity

< + 0.025 % FSO (Full Scale Output)

Hysteresis

< + 0.02 % FSO

Non-Repeatability

< + 0.01 % FSO

Creep (30 minutes)

< + 0.03 % FSO

Input Resistance

770 + 20 Ohms

Output Resistance

770 + 7 Ohms

Insulation Resistance (50VDC)

> 1000 Mega Ohms

Cable Length (4 core)

15 mtr

Safe Overload

150 %

Ultimate Overload of Rated

300 %

Allowable Side Load

50%

Side Load Discrimination

500:1

Temp. Compensated Range

0-60oC

Temp. Effect on Output

< 0.0015 % FSO/oC

Temp. Effect on Zero

< 0.0020 % FSO/oC

Deflection

< 0.5 mm at FSO

Tightening Torque

10 m.kg.

Finish & Construction

Electroless Nickel plated tool steel

Environmental Protection class

IP 68

Translent voltage protection

Provided
