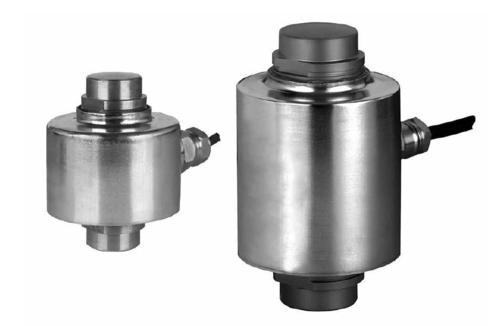

Type RC3 Load Cell

Type RC3 Load Cell
Type RC3 Load Cell
Product Code : Flintec RC 3
Brand Name : AVER SCALES & SYSTEMS
Product Description

Product Description

The type RC3 is a stainless steel self centering rocker column load cell with complete hermetic sealing. It is a perfect fit for use in harsh industrial environments.

Application

Weighbridges, hoppers, tanks and silos

Key Features

  • Wide range of capacities from 7.5 t to 300 t
  • Stainless steel construction
  • Environmental Protection IP68 with complete hermetic sealing
  • Self restoring design
  • High input resistance
  • Calibration in mV/V/Ω

Options

Integrated surge protectors

Y = 10 000 for C3 (for 30 t and 40 t)

Approvals

  • OIML approval to C1 (Y = 5 000), C3, C3 MI8 and C4 (Y = 15 000)
  • NTEP approval to 10 000 intervals, Class III L (for 7.5 to 100 t)
  • ATEX hazardous area approval for Zone 0, 1, 2, 20, 21 and 22
  • FM hazardous area approval

Packed Weight

  • Capacity (t) 7.5 15 22.5 30 40 Weight (kg) 1.3 1.4 1.5 3.3 3.6
  • Capacity (t) 50 100 150 300 Weight (kg) 4.5 4.7 8.5 26.5

Available Accessories

  • Compatible range of application hardware
  • Compatible range of electronics

Technical Specifications:

Maximum Capacity (Emax)

T

7.5/15/22.5/30/40/5 /100/150/300

7.5/15/22.5/30/40/50

Minimum dead load (Emin)


2%*Emax

Accuracy class according to OIML R60


(GP)

C1

C3

C3 MI 8

C4

Maximum number of verification intervals (nLc)


n.a

1000

3000

4000

Minimum load cell verification interval (Vmin)


n.a.

Emax/5000

Emax/15000

Temp. Effect on minimum dead load output (TCo)

%R0/10oC

+0.400

+0.0280

+0.0093

Temperature effect on sensitivity (TCRO)

%R0/10oC

+0.0200

+0.0160

+0.0100

+0.0080

Combined error

%*RO

+0.0500

+0.0300

+0.0200

+0.0180

+0.0180

Non-linearity

%*RO

+0.0400

+0.0300

+0.0166

+0.0166

+0.0125

Hysteresis

%*RO

+0.0400

+0.0300

+0.0166

+0.0062

+0.0125

Creep error (30 minutes)/ DR

%*RO

+0.0600

+0.0490

+0.0166

+0.0062

+0.0125

Option

Min. Load cell verification interval (Vmin opt)


n.a

n.a

Emax/10000

n.a

n.a

Temp. Effect on min. Dead load output (TCo opt)

%R0/10oC

n.a

n.a

+0.0140

n.a

n.a

Rated output (RO)

MV/V

2+0.1%

Calibration in mV/V/(A.. classified

%

+0.05 (+0.005)

Zero balance

%*RO

+5

Excitation voltage

V

5-15

Input resistance (Rlc)


1150+50

Output resistance (Rout)


1000+2

Insulation resistance (100V DC)

M

>5000

Compensated temperature range

oC

-10 +40

Operating temperature range

oC

-40+80 (ATEX-40+60)

Protection according EN 60 529


IP68 (up to 2m water depth) /IP69K
