Weighing Scale

Weighing Scale
Weighing Scale
Product Code : 01
Brand Name : Essae
Product Description

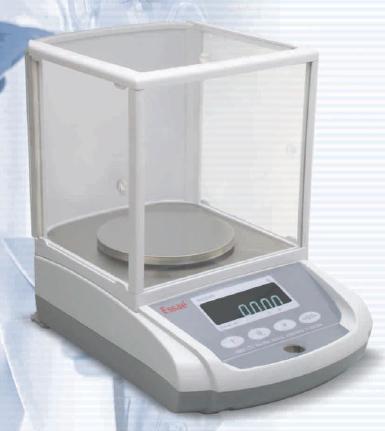

Essae Lab Scale FB PG Series

The need of accuracy and precision is most crucial for Research, Lab, Jewellery & Industries. Any organisation developing products for such an industry should provide more emphasis on precise weighing. We understand that from the smallest diamonds to the most precious gold jewellery, every milligram counts & every milligram of material used during research could drastically change the outcome.

Understanding the importance of these aspects, Essae has introduced Weighing balance for the Jewellery, Laboratory & Research industry. And hence, we understand your need for highly precise and extremely accurate readings during weighing.

The PG/FB series has been carefully designed to provide for all your jewellery, lab & research weighing requirements. Its MFRT/EMFC sensor ensures accuracy in readings and gives you extremely quick responses. The sleek housing and compact cabinet design makes it light in weight and easy to fit in any space. Its unique VFD Display further ensures easy readability while noting weights.

Every electronic balance comes with a standard RS-232C interface, which allows for easy connectivity to your computer Interface.

In everyway, the PG/FB series gives weight to all your considerations to provide the perfect solution for your weighing needs.

Table-Top Balance

Model Number

FB-200

FB-300

FB-600

PG-1000

FB-2000

FB-3000

Maximum weighing capacity

200g

300g

600g

1000g

2000g

3000g

Readability, d=

0.001g

0.001g

0.005g

0.01g

0.01g

0.01g

Display resolution

2,00,000

3,00,000

1,20,000

1,00,000

2,00,000

3,00,000

Platter Size

Dia 110mm

Dia 110mm

Dia 110mm

Dia 150mm

Dia 150mm

Dia 150mm

Draft Shield

Included (Standard)

Included (Standard)

Included (Standard)

Factory Option

Factory Option

Factory Option


Model Number

PG-10000

PG-34000

Maximum weighing capacity

10000g

34000g

Readability, d=

0.1g

0.5g

Display resolution

1,00,000

68,000

Platter Size

205 x 250mm

205 x 250mm


Technical Specifications

Model

PG/FB Series Electronic weighing balance

RS-232C Interface

Included (standard)

Technology

Magnetic Force Restoration Technology (MFRT)

Processor

Digital 8 bit micro-computer

Operating temperature

+10oC to +40oC

Calibration method

Automatic Software calibration (External weight)

Sensitivity drift (20°C to 40°C)

+/- 5ppm/oC

Tare range

Full capacity

Display type

Green Vacuum fluorescent display(VFD)

Repeatability/Verification interval Linearity

+/- 1d
+/- 2d

Display digits / Size

7 Digits / 13 mm

Dimensions without draft shield (Width x Depth X Height)

190mm x 275mm x 85mm (table-top)
257mm x 350mm x 97mm (PG 10000 & PG 34000)

Power supply-Balance

6 - 7.5V DC, Max - 1A

Approx. gross weight (balance only)

2 to 2.3kg (table-top) 6.4kg (PG-10000 & PG-34000)

Power supply -AC/DC adaptor

Input - 230V AC, 50Hz
Output - 6.9V DC @ 1.5A,
Max Watt - 13W


W&M classification

Class II (PG Series)
Class I (FB Series)

Default weighing units

Grams
